Brokk Demolition Robots
BROKK 900 ROTOBOOM
Brokk Demolition Robots
BROKK 900 ROTOBOOM
Whether you need power or precision for a cleanout, the Brokk 900 Rotoboom delivers reliable performance every time.
The Brokk 900 Rotoboom, the heaviest robot in Brokk’s lineup, offers an incredible 10-meter reach and 360-degree arm rotation. This robot excels in heavy and demanding demolition and maintenance work in the metal processing industry. Equipped with Brokk’s unique heat and impact-protected process breaker, it is perfect for working with hot ladles, converters, runners, and furnaces. Enhanced maneuverability allows for precision work like never before.
- Specifically designed for tough metal processing applications
- Rotating arm system provide optimal flexibility
- Patented heat-shielded process breaker
- Diesel or electric powered
Brokk unique control system

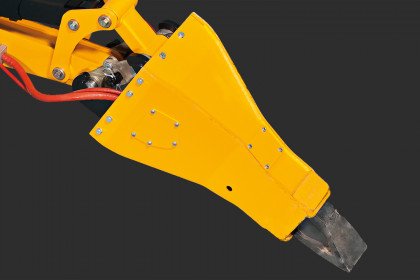

Heat protected breaker
SmartPower™

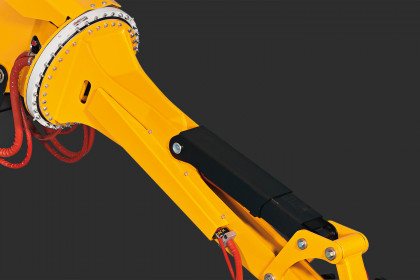

Rotation boom
Technical
Attachments
Options
| Kategori | Spesifikasi |
| Performance | |
| Slewing speed | 16 sec/360° |
| Transport speed, max. | 2.8 km/h; 1.7 mph |
| Climbing inclination, max. | 30° |
| Hydraulic system | |
| Hydraulic system capacity | 230 l; 60.8 US gal |
| Pump type | Variable load-sensing |
| System pressure | 18,5 MPa; 2 683 psi |
| Increased pressure to attachment | 25,0 MPa; 3 626 psi |
| Pump flow Diesel/50 Hz el. motor | 148 l/min; 39 US gal/min |
| Pump flow 60 Hz el. motor | 178 l/min; 47 US gal/min |
| Power system | |
| Electric motor type | ABB |
| Power* | 71 kW |
| Recommended fuse size* | 125 A |
| Starting device | Soft start |
| Diesel performance | |
| Type 1 | Kohler Four-cylinder, water-cooled, 4-stroke engine |
| Engine | 55.5 kW; 74 hp diesel EPA Tier 4, EU Stage V |
| Engine oil volume | 15.6 l; 4.1 US gal |
| Type 2 | Kubota Four-cylinder, water-cooled, 4-stroke engine |
| Engine** | 55.5 kW; 74 hp diesel EPA Tier 3, EU Stage IIIA |
| Engine oil volume | 13.2 l; 3.5 US gal |
| Fuel tank capacity | 80 l; 21 US gal |
| Freezing point | -40°C; -40°F |
| Control system | |
| Control type | SmartRemote™, portable control |
| Signal code | Digital |
| Transfer | Professional radio/Cable |
| Range, radio | Up to 300 m |
| Weight | |
| Machine weight*** | 11,600 kg; 25,574 lbs |
| Recommended attachment weight | 600 kg; 1323 lbs |
| Noise level | |
| Sound power level LWA**** El: | 99 dB(A) |
| Sound power level LWA**** Diesel: | 103 dB(A) |
| Power | 55.5 D, 71 E |
| Dimensions | |
| Width min. | 2150 mm; 86.5 in |
| Height min. | 2545 mm; 100.8 in |
| Vertical reach (incl. breaker) | 10,000 mm; 394 in |
| Horizontal reach (incl. breaker) | 9500 mm; 374 in |
