Brokk Demolition Robots
BROKK 70
Brokk Demolition Robots
BROKK 70
The Brokk 70 is the ideal solution for safe and efficient demolition in confined spaces. With a 100% increase in demolition capacity compared to its predecessor, the Brokk 60, this model combines remarkable power, compact size, and lightweight design to perform tasks previously impossible with mechanized demolition. Equipped with SmartPower™ and a smooth hydraulic system, the Brokk 70 delivers immense power in a miniature size, eliminating the need for handheld tools.
- Weighs less than 560 kg
- 9.8 kW Brokk SmartPower™ electrical system
- Powered with only 16 A electricity fuse
- Extremely compact - gets through the narrowest doorways

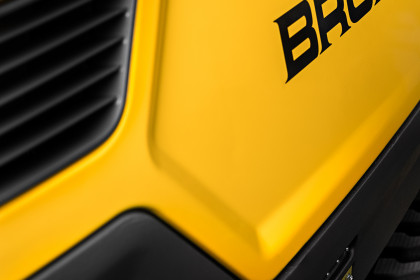

Casted chassie parts
Daily maintenance - hoods on
SmartPower™
Three part arm system
Technical
Attachments

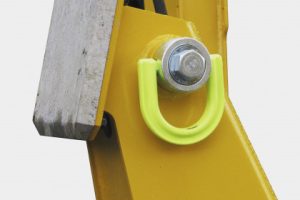

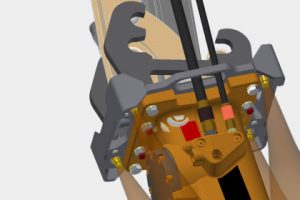

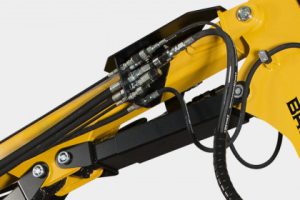

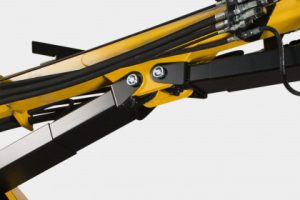

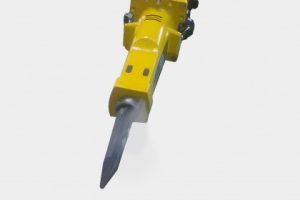

Options
| Kategori | Spesifikasi |
| Performance | |
| Slewing speed | 6,5 sec/245° |
| Transport speed, max. | 2.7 km/h; 1.7 mph |
| Climbing inclination, max. | 30° |
| Hydraulic system | |
| Hydraulic system capacity | 27 l; 7.1 US gal |
| Pump type | Variable load-sensing |
| System pressure | 17 MPa; 2466 psi |
| Pump flow max. 50Hz and 60Hz | 27 l/min; 7 US gal/min |
| Power system | |
| Power technology | SmartPower™ |
| Electric motor type | ABB |
| Power* | 9.8 kW |
| Recommended fuse size* | 16 A |
| Starting device | Direct start |
| Control system | |
| Control type | SmartRemote™, portable |
| Signal code | Digital |
| Transfer | Professional radio/Cable |
| Range, radio | Up to 300 m |
| Weight | |
| Machine weight** | 560 kg; 1235 lbs |
| Recommended attachment weight | 105 kg; 231 lbs |
| Noise level | |
| Sound power level LWA*** | 90 dB(A) |
| Dimensions | |
| Width min. | 597 mm; 23.5 in |
| Height min. | 880 mm; 34.6 in |
| Vertical reach (incl. breaker) | 3200 mm; 126 in |
| Horizontal reach (incl. breaker) | 2700 mm; 106 in |
