Brokk SmartPower+ Generation
BROKK 500+
Brokk SmartPower+ Generation
BROKK 500+
When it comes to power, more is more, and the Brokk 500+ is the true embodiment of unmatched demolition power.
Powered by a state-of-the art electrical powertrain, the new Brokk 500+ boasts a robust design, exceptional power and outstanding reach, dominating the industry. Cutting-edge technology and an innovative operator support system for better communication between the operator and the robot enhance the operating experience.
- Increase in uptime and more power over time
- Smart sensors and a sophisticated Brokk operator support system
- Ergonomically designed lightweight control box weighing less than 3kg
- Tilted joysticks, easy-to-reach features and faster dual charging
- Boasts an impressive working reach and radius
- Powered by a robust 41 kW Brokk SmartPower+ electrical system

Brokk SmartPower+

Visual status communication system

Ergonomic control box

Daily maintenance - hoods on

Brokk QuickSwitch

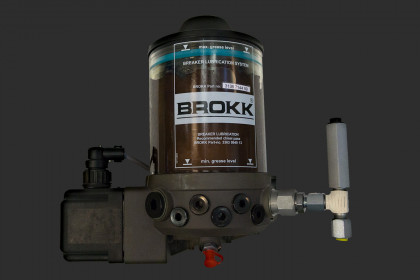

Big size grease container

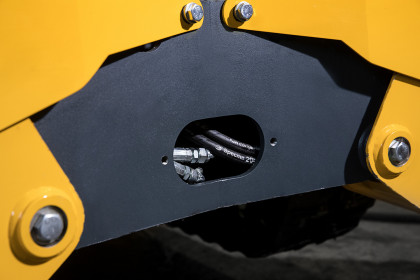

Divided hose connection – outriggers

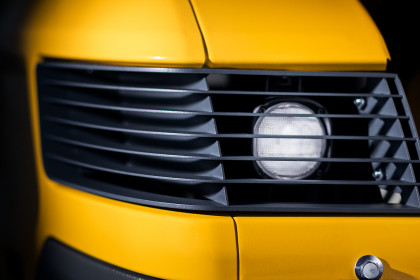

Reinforced headlight protection
Technical
Attachments
Options
| Kategori | Spesifikasi |
| Performance | |
| Slewing speed | 16 sec/360° |
| Transport speed, max. | 1.8 km/h; 1.1 mph |
| Climbing inclination, max. | 30° |
| Hydraulic system | |
| Hydraulic system capacity | 145 l; 38 US gal |
| Pump type | Variable load-sensing |
| System pressure | 18 MPa; 2611 psi |
| Increased pressure to attachment | 24 MPa; 3481 psi |
| Pump flow 50Hz | 115 l/min; 30 US gal/min |
| Pump flow 60Hz | 130 l/min; 34 US gal/min |
| Power system | |
| Power technology | SmartPower+ |
| Electric motor type | ABB |
| Power* | 41 kW |
| Recommended fuse size* | 63 A |
| Starting device | Soft start/Direct start |
| Control system | |
| Control unit | Portable |
| Signal code | Digital |
| Transfer | Professional radio/Cable |
| Range, radio | Up to 300 m |
| Weight | |
| Machine weight** | 5200 kg; 11,464 lbs |
| Recommended attachment weight | 700 kg; 1543 lbs |
| Noise level | |
| Sound power level LWA*** | 100 dB(A) |
| Dimensions | |
| Width min. | 1600 mm; 63 in |
| Height min. | 1677 mm; 66 in |
| Vertical reach (incl. breaker) | 7300 mm; 287 in |
| Horizontal reach (incl. breaker) | 7000 mm; 276 in |
Breaker
Concrete Crusher
Bucket
Clamshell Bucket
Multi-Purpose Grapple

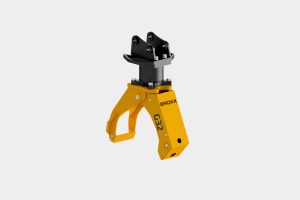

Sorting & Demolition Grapple
Drum Cutter
Cut-Off Saw
Drilling Equipment
Planer

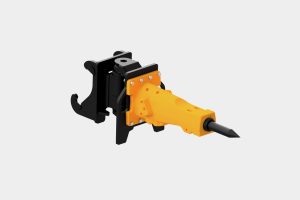

Side Angling Device
Extra Cylinder Protection

Heat resistant hoses

Forced draft cooling of machine

Forced draft cooling for breaker

Steel pads

Waterspray

Air flushing for breaker

Extra hydraulic function

Lifting eyes

Counterweight

Cable reel

Brokk cover

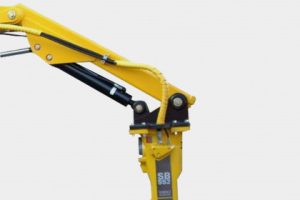

Heavy duty dipper arm
