Brokk SmartPower+ Generation
BROKK 300+
Brokk SmartPower+ Generation
BROKK 300+
The new generation Brokk 300+ offers unparalleled strength, impressive reach, and unwavering reliability.
The Brokk 300+ represents a leap forward in both power and intelligence. Boasting remarkable hitting power and an enhanced capacity for driving heavy and powerful attachments, the new generation Brokk 300+ offers unparalleled strength, impressive reach, and unwavering reliability. Renowned for its exceptional power and performance, the Brokk 300+ truly is in a league of its own!
- Increase in uptime and more power over time
- Smart sensors and a sophisticated Brokk operator support system
- Lightweight control box (less than 3kg) and tilted joysticks resulting in more comfortable and efficient work shifts
- Impressive 6-meter reach
- Driven by a robust 37 kW Brokk SmartPower+ electrical system
- Capable of handling heavier and more powerful attachments

Brokk SmartPower+

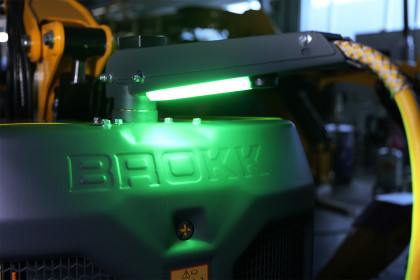

Visual status communication system

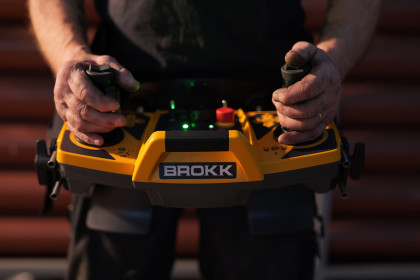

Ergonomic control box

Daily maintenance - hoods on

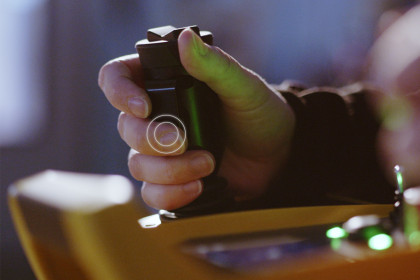

Brokk QuickSwitch

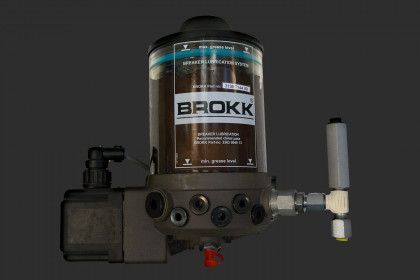

Big size grease container

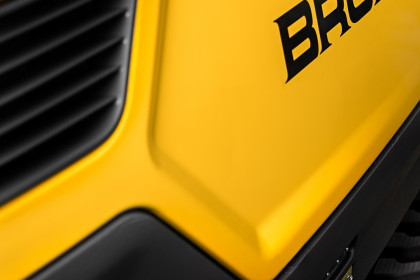

Casted chassie parts
Technical
Attachments
Options
| Kategori | Spesifikasi |
| Performance | |
| Slewing speed | 16 sec/360° |
| Transport speed, max. | 2.7 km/h; 1.7 mph |
| Climbing inclination, max. | 30° |
| Hydraulic system | |
| Hydraulic system capacity | 95 l; 25 US gal |
| Pump type | Variable load-sensing |
| System pressure. | 17 MPa; 2466 psi |
| Increased pressure to attachment | 23 MPa; 3336 psi |
| Pump flow 50Hz | 100 l/min; 26 US gal/min |
| Pump flow 60Hz | 120 l/min; 32 US gal/min |
| Power system | |
| Power technology | SmartPower+ |
| Electric motor type | ABB |
| Power* | 37 kW |
| Recommended fuse size* | 63 A |
| Starting device | Soft start/Direct start |
| Control system | |
| Control unit | Portable |
| Signal code | Digital |
| Transfer | Professional radio/Cable |
| Range, radio | Up to 300 m |
| Weight | |
| Machine weight** | 3650 kg; 8047 lbs |
| Recommended attachment weight | 500 kg; 1102 lbs |
| Noise level | |
| Sound power level LWA*** | 95 dB(A) |
| Dimensions | |
| Width min. | 1200 mm; 47.2 in |
| Height min. | 1530 mm; 60.2 in |
| Vertical reach (incl. breaker) | 6500 mm; 256 in |
| Horizontal reach (incl. breaker) | 6100 mm; 240 in |
Breaker
Concrete Crusher
Bucket
Clamshell Bucket

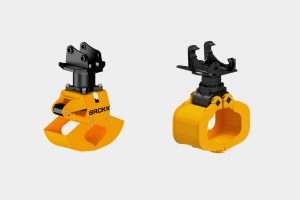

Multi-Purpose Grapple
Sorting & Demolition Grapple
Drum Cutter
Cut-Off Saw
Drilling Equipment
Planer
Side Angling Device
Extra Cylinder Protection

Heat resistant hoses

Forced draft cooling of machine

Forced draft cooling for breaker

Steel pads

Waterspray

Air flushing for breaker

Extra hydraulic function

Lifting eyes

Counterweight

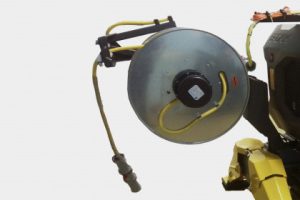

Cable reel

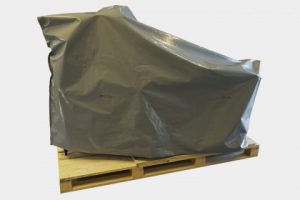

Brokk cover

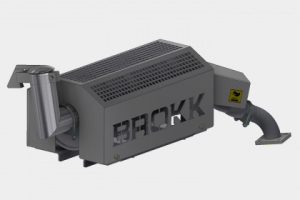

Particulate filter

Steel caterpillar tracks

Rubber caterpillar tracks
