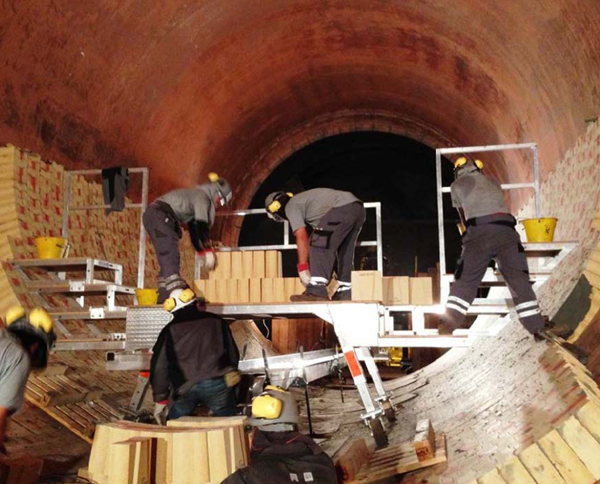

Our ergonomic rolling deck greatly improves kiln lining performance. It is easy to assemble and move inside the kiln, and it will safely support the men and materials needed to install the brick rings up to the spring line.
It is manufactured in durable 6061-T6 (aircraft grade) aluminium. This means it will be robust yet manoeuvrable. A typical deck will have a load capacity of 2,720 Kg (6,600 lb). Safety rails are a standard feature as are kick brakes on the castors keeping the platform stable. Pin connectors help with quick and easy assembly. Steps make the installation process safe and easy for the masons.
We design each rolling deck to meet the needs of your kiln and would be happy to quote for your requirements. Our equipment is ANSI, MSHA, CE and CSA compliant.
- Structural Components 6061-T6 Aluminium
- Load Capacity 2,720 kg (6,600 lb)
- Polyurethane Double wheels with brake
- Safety Fall Guards
- ANSI, MSHA, CE and CSA compliant
- Ergonomic Step Design up to spring line
- Pin connections for quick assembly and disassembly
- Hitch Rings in front to pull cart up kiln with a winch
- Room for workers, tools, and staging brick
- Custom designed for specific kiln diameters

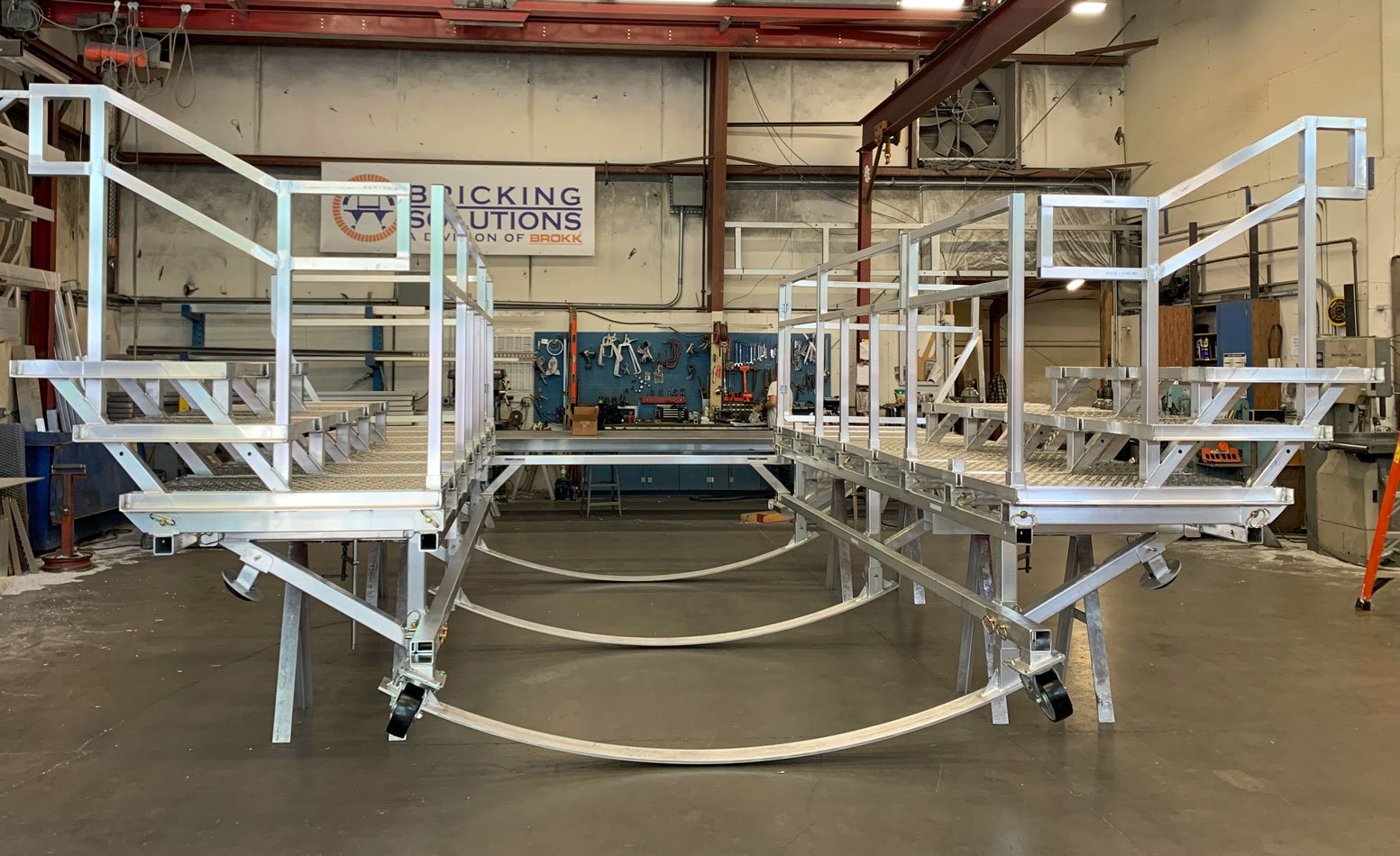

The Split Bedding Cart features dual decks to provide clearance for equipment and personnel to easily and safely travel through the kiln. Forklifts and skid steers can easily drive over the curved bottom braces and move to the front or back of the cart.
The standard split unit has a minimum width of 1.3 metres (4.25 feet) and fits kilns between 4-7 metres (13.08-23 feet). The typical deck features a load capacity of 793 kilograms (1,750 pounds) per side. The cart includes rubber feet to protect newly bedded brick.
Like all Bricking Solutions equipment, the Split Bedding Cart is constructed with 6061-T6 aircraft-grade aluminium, which is as strong as steel but only two-thirds the weight, and tested rigorously for safety.
- Dual decks
- Clearance for equipment and personnel
- Constructed with 6061-T6 aluminium
- Step design
- Load capacity of 793 kilograms (1,750 pounds) per side
- Removable fall guards
- Pin connections for quick assembly and disassembly
- Polyurethane double wheels with brakes
