Brokk Demolition Robots
BROKK 500
Brokk Demolition Robots
BROKK 500
The Brokk 500 offers 40% more demolition power than its predecessor, the Brokk 400. With a reinforced design and extended reach, it sets a new standard for power-to-size ratio in its segment. The addition of new technology allows it to use heavier attachments like the powerful BHB 705 breaker, while maintaining the compact dimensions of the Brokk 400. With the Brokk 500, more really is more.
- 40% more demolition power with the BHB 705 breaker
- Extended working reach and radius
- 41 kW Brokk SmartPower™ electrical system
- Compatible with all Brokk 400 attachments

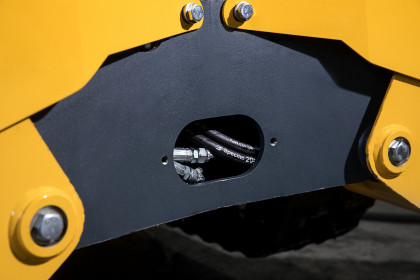

Divided hose connection – outriggers
Big size grease container
Brokk unique control system
Daily maintenance - hoods on
SmartPower™
Reinforced headlight protection
Technical
Attachments
Options
| Kategori | Spesifikasi |
| Performance | |
| Slewing speed | 16 sec/360° |
| Transport speed, max. | 1.8 km/h; 1.1 mph |
| Climbing inclination, max. | 30° |
| Hydraulic system | |
| Hydraulic system capacity | 145 l; 38 US gal |
| Pump type | Variable load-sensing |
| System pressure | 18 MPa; 2611 psi |
| Increased pressure to attachment | 24 MPa; 3481 psi |
| Pump flow 50Hz | 115 l/min; 30 US gal/min |
| Pump flow 60Hz | 130 l/min; 34 US gal/min |
| Power system | |
| Power technology | SmartPower™ |
| Electric motor type | ABB |
| Power* | 41 kW |
| Recommended fuse size* | 63 A |
| Starting device | Soft start/Direct start |
| Control system | |
| Control type | SmartRemote™, portable |
| Signal code | Digital |
| Transfer | Professional radio/Cable |
| Range, radio | Up to 300 m |
| Weight | |
| Machine weight** | 5200 kg; 11,464 lbs |
| Recommended attachment weight | 700 kg; 1543 lbs |
| Noise level | |
| Sound power level LWA*** | 100 dB(A) |
| Dimensions | |
| Width min. | 1600 mm; 63 in |
| Height min. | 1677 mm; 66 in |
| Vertical reach (incl. breaker) | 7300 mm; 287 in |
| Horizontal reach (incl. breaker) | 7000 mm; 276 in |
