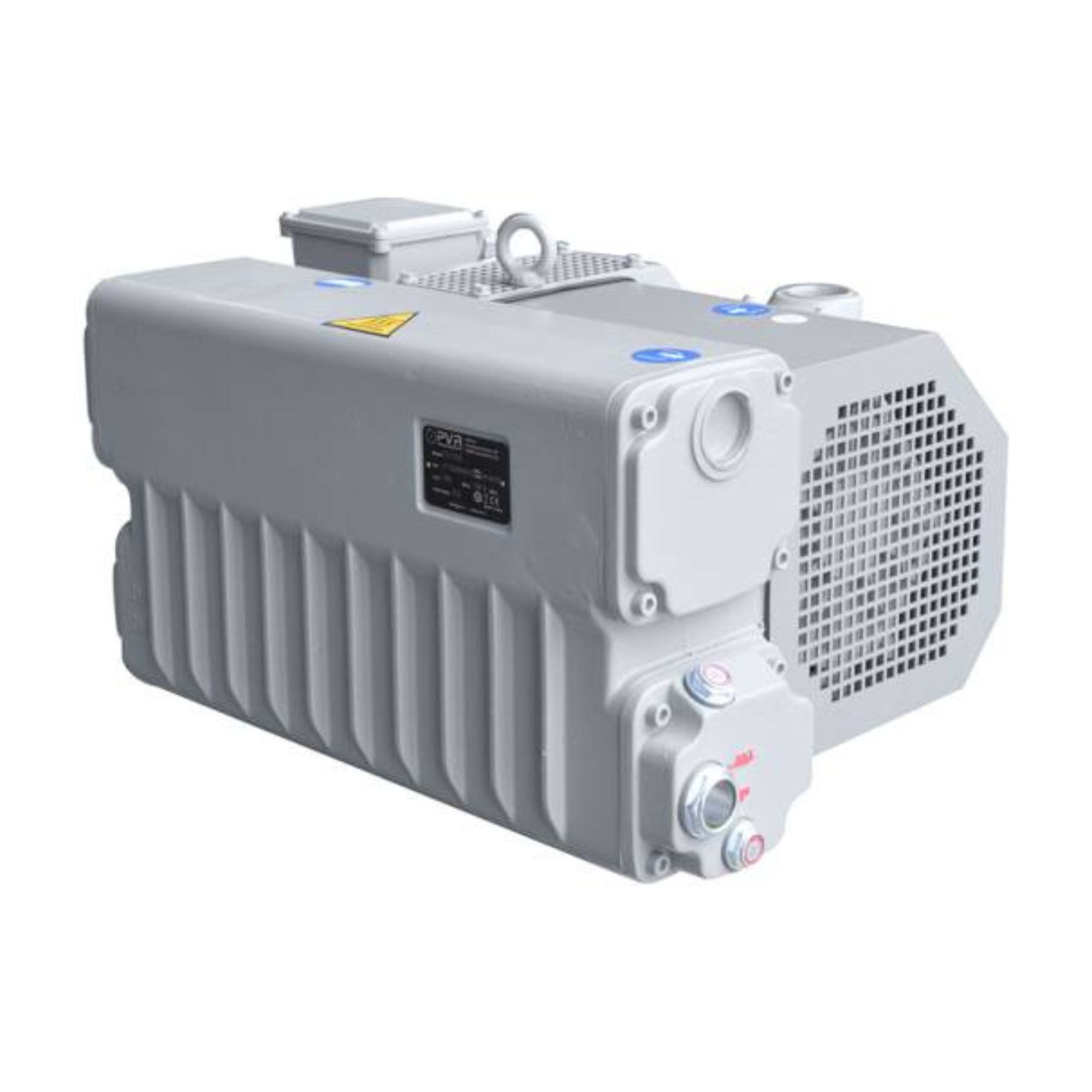

The EU 45, EU 65 and EU 105 are single-stage rotary vane lubricated pumps with oil recirculation.
The flanged electric motor is connected by an elastic coupling.
Cooling is ensured by a powerful centrifugal fan.
An integrated check valve prevents the oil from coming back and the return of air into the chamber to be pumped down during the stop phase.
The oil tank is provided with a system for separating the oil mists from the exhaust air; the separated oil is automatically recovered from the pump.
The gas ballast prevents condensation inside the pump when small quantities of steam are sucked.
The EU 45, EU 65 and EU 105 pumps are suitable for the evacuation of closed systems or to operate at a constant vacuum included in the following range:
-
EU 45 – EU 65 – EU 105 from 0.5 to 300 mbar (absolute)
-
EU 45 B – EU 65 B – EU 105 B from 10 to 850 mbar (absolute)
ACCESSORIES
The following accessories are useful for the installation and for the control of the pump operation parameters:
-
External suction filter
-
Vacuum gauges / vacuostats
-
Pressure gauges / pressure switches
-
Thermostat
-
Minimum oil level switch

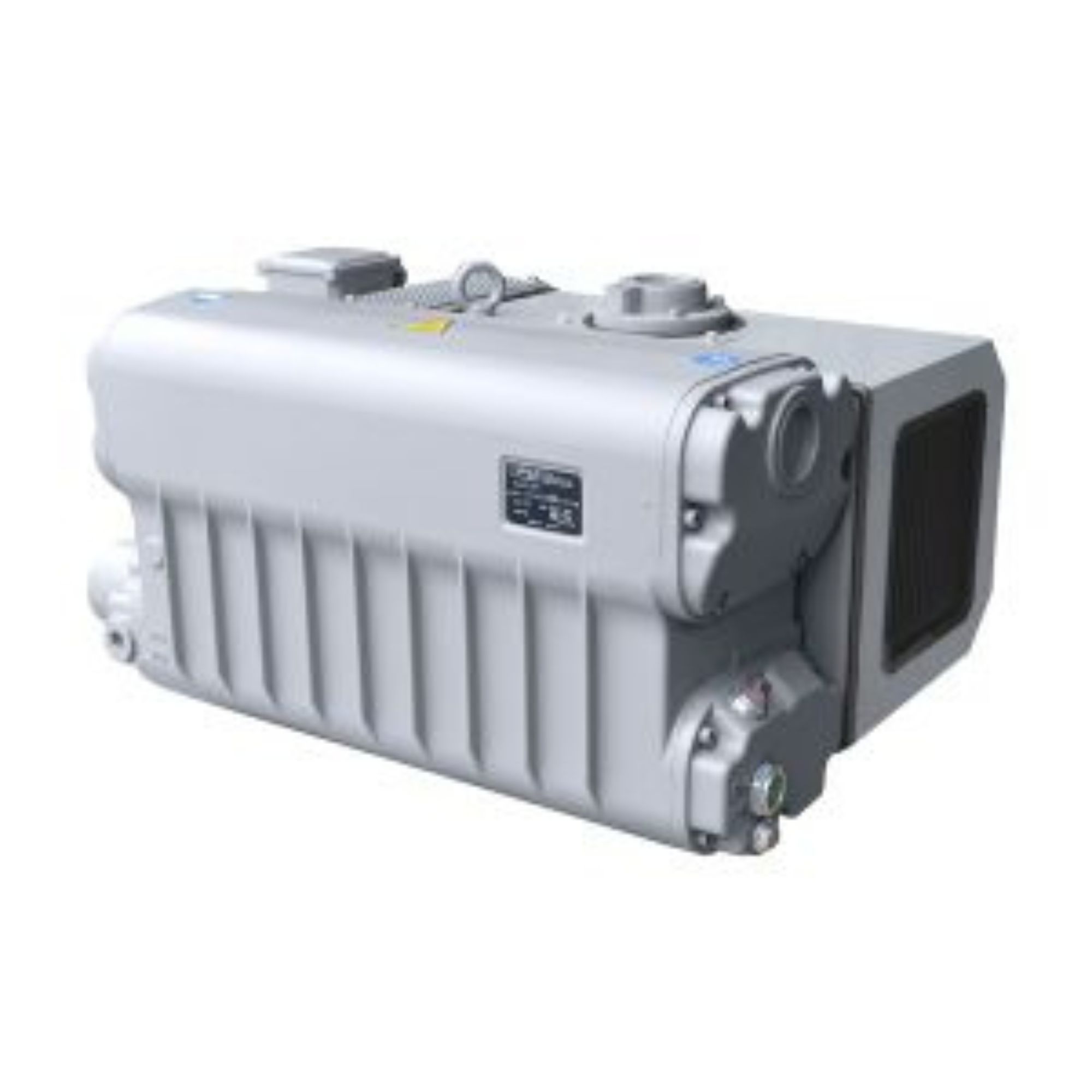

The EU 160, EU 205 and EU 300 are single-stage rotary vane lubricated pumps with oil recirculation.
The flanged electric motor is coupled by an elastic coupling.
Cooling is ensured by an air-oil heat exchanger and with a centrifugal fan.
An integrated check valve prevents the oil from coming back and the return of air into the chamber to be pumped down during the stop phase.
The oil tank is provided with a system for separating the oil mists from the exhaust air; the separated oil is automatically recovered from the pump.
The gas ballasts prevent condensation inside the pump when small quantities of steam are sucked.
The EU 160, EU 205 and EU 300 series pumps are suitable for the evacuation of closed systems or to operate at a constant vacuum included in the following range:
EU 160 – EU 205 – EU 300 from 0.5 to 300 mbar (absolute)
EU 160 B – EU 205 B – EU 300 B from 10 to 850 mbar (absolute)
ACCESSORIES
The following accessories are useful for the installation and for the control of the pump operation parameters:
-
External suction filter
-
Vacuum gauges / vacuostats
-
Pressure gauges / pressure switches
-
Thermostat
-
Minimum oil level switch

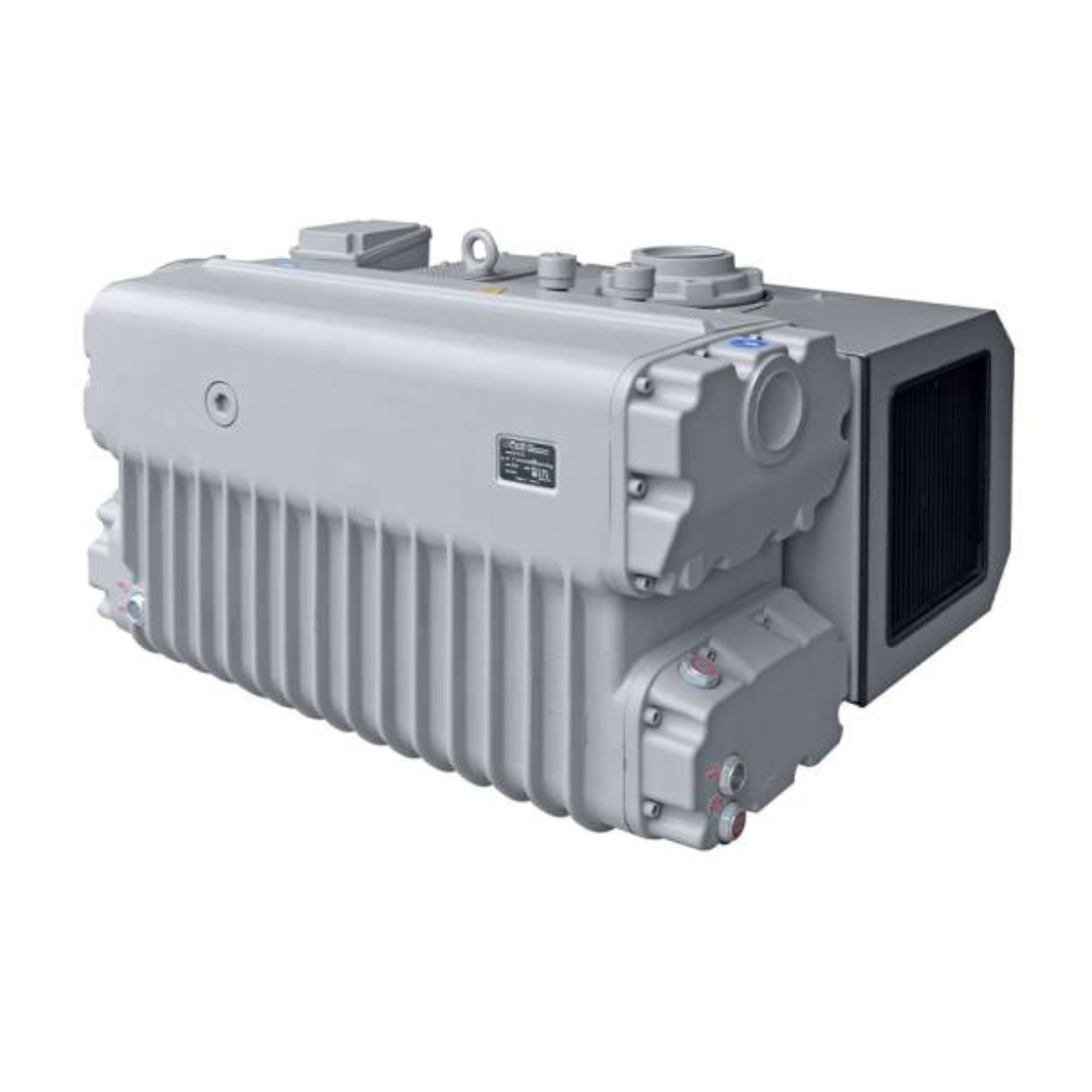

The EU 650 and EU 1000 are single-stage rotary vane lubricated pumps with oil recirculation.
The flanged electric motor is coupled by an elastic coupling.
Cooling is ensured by an air-oil heat exchanger and with a centrifugal fan.
An integrated check valve prevents the oil from coming back and the return of air into the chamber to be pumped down during the stop phase.
The oil tank is provided with a system for separating the oil mists from the exhaust air; the separated oil is automatically recovered from the pump.
The gas ballasts prevent condensation inside the pump when small quantities of steam are sucked.
The EU 650 and EU 1000 pumps are suitable for the evacuation of closed systems or to operate at a constant vacuum included in the following range:
EU 650 from 0.5 to 850 mbar (absolute)
EU 1000 from 0.5 to 300 mbar (absolute)
EU 1000 B from 10 to 850 mbar (absolute)
ACCESSORIES
The following accessories are useful for the installation and for the control of the pump operation parameters:
-
External suction filter
-
Vacuum gauges / vacuostats
-
Pressure gauges / pressure switches
-
Thermostat
-
Minimum oil level switch

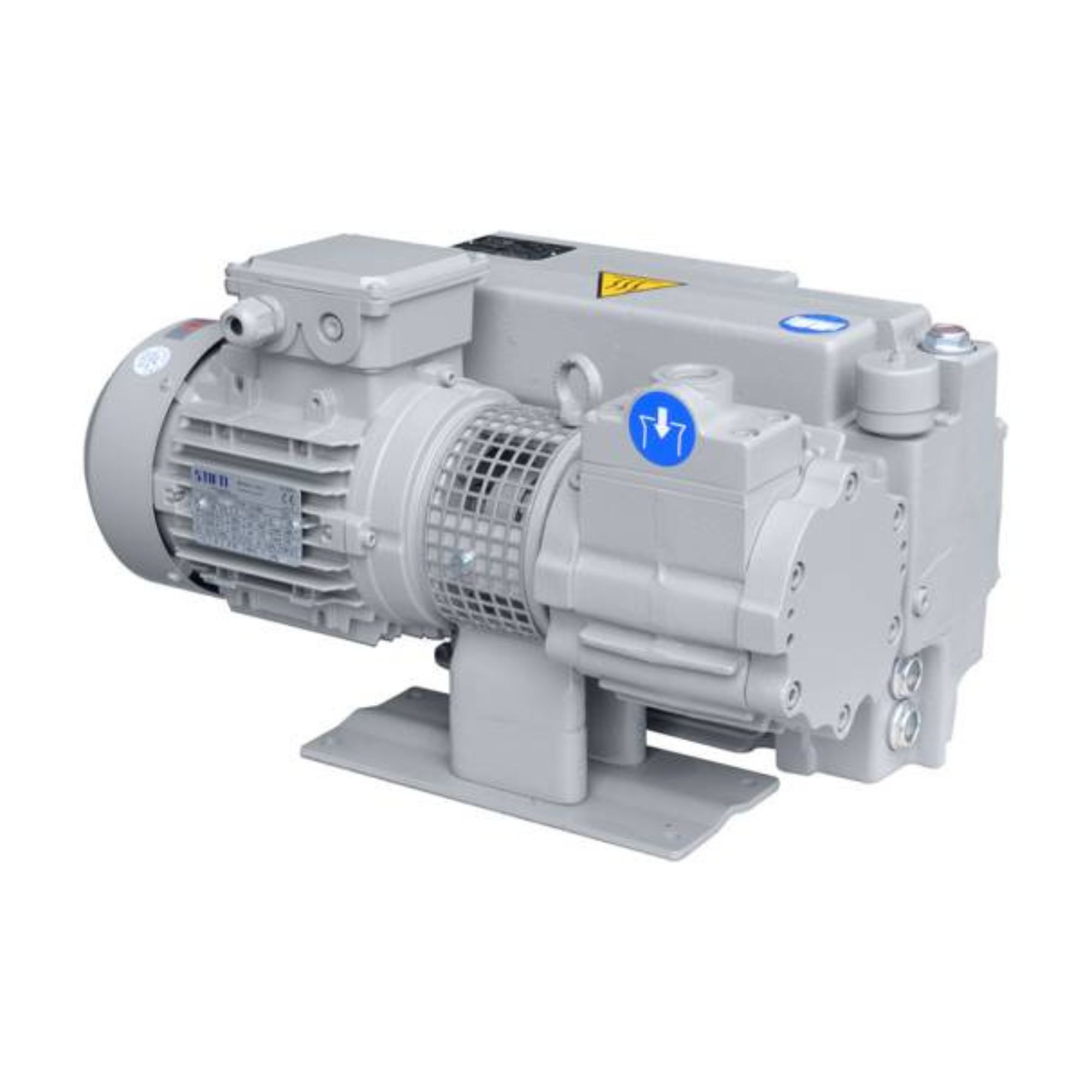

PVL 15 dan PVL 35 adalah pompa sirip putar pelumasan oli satu tahap dengan resirkulasi oli.
Motor listrik flens terhubung melalui kopling elastis.
Katup kontrol terintegrasi mencegah oli kembali dan udara masuk ke ruang yang akan dipompa selama fase berhenti.
Tangki oli dilengkapi sistem pemisahan kabut oli dari udara buangan; oli yang terpisah secara otomatis dikembalikan ke pompa.
Gas ballast mencegah kondensasi uap air di dalam pompa saat uap air dalam jumlah kecil terhisap.
Pompa PVL 15 dan PVL 35 cocok untuk evakuasi sistem tertutup atau beroperasi pada vakum konstan dalam rentang:
-
PVL 15 – PVL 35: dari 0,5 hingga 300 mbar (absolut)
-
PVL 15 B – PVL 35 B: dari 20 hingga 850 mbar (absolut)
AKSESORIS
Aksesoris berikut berguna untuk instalasi dan pengendalian parameter operasi pompa:
-
External suction filter
-
Vacuum gauges / vacuostats
-
Pressure gauges / pressure switches
-
Thermostat
-
Minimum oil level switch

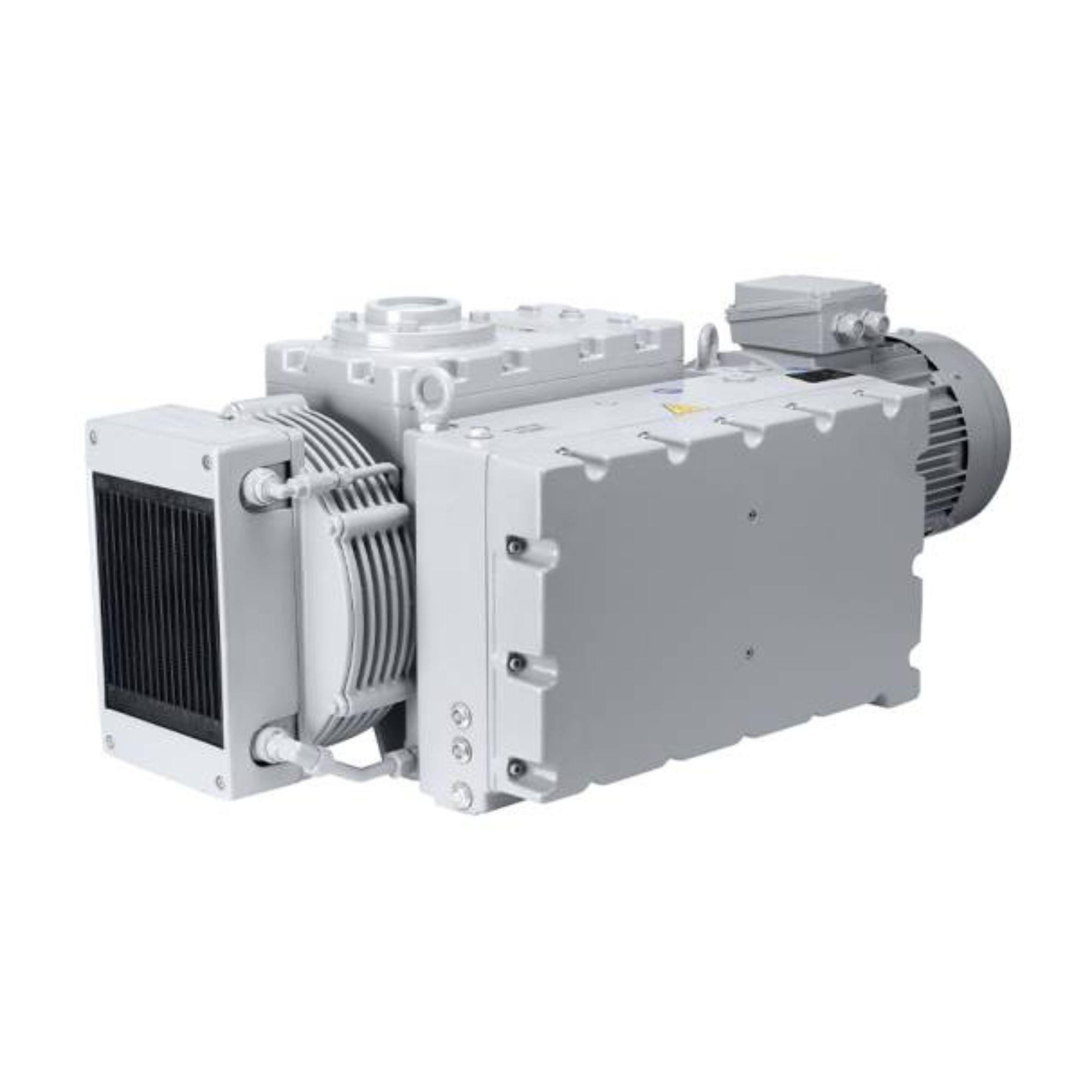

PVL 401 and PVL 541 are single-stage, rotary vane lubricated pumps with oil recirculation.
The flanged electric motor is connected by means of an elastic coupling. Cooling is ensured by an air/oil heat exchanger and with a centrifugal fan.
An integrated check valve prevents the oil from coming back and the return of air into the chamber to be pumped down during the stop phase.
The oil tank is provided with a system for separating the oil mists from the exhaust air; the separated oil is automatically recovered from the pump.
The gas ballasts prevent condensation inside the pump when small quantities of steam are sucked.
The PVL 401 and PVL 541 pumps are suitable for the evacuation of closed systems or to operate at a constant vacuum included in the following range:
-
PVL 401 – PVL 541 from 0.5 to 300 mbar (absolute)
-
PVL 401 B – PVL 541 B from 10 to 850 mbar (absolute)
ACCESSORIES
The following accessories are useful for the installation and for the control of the pump operation parameters:
-
External suction filter
-
Vacuum gauges / vacuostats
-
Pressure gauges / pressure switches
-
Thermostat
-
Minimum oil level switch
