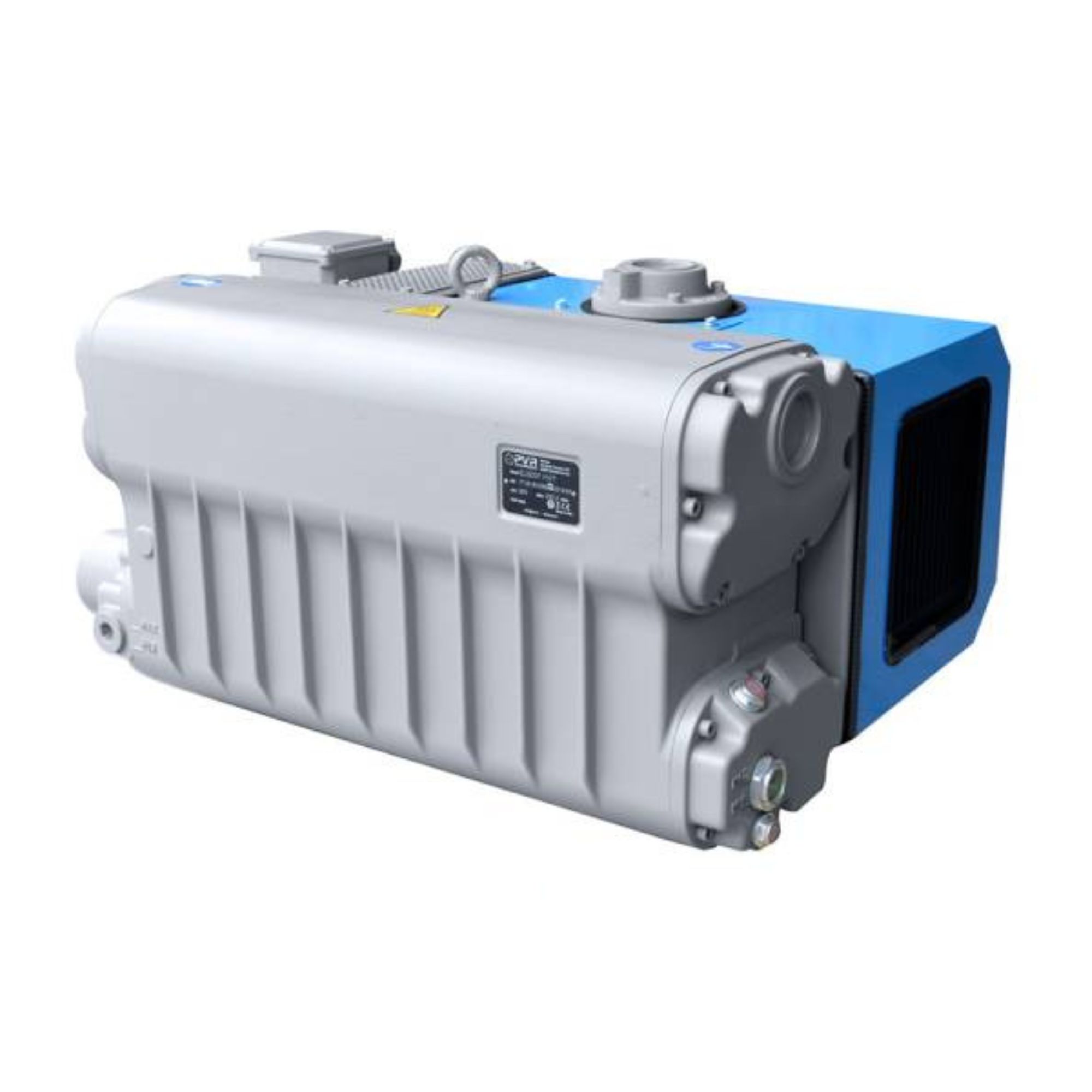

EU HWT Series Description
The EU HWT series pumps are single-stage rotary vane lubricated vacuum pumps with oil recirculation.
The flanged electric motor is coupled by an elastic coupling.
Cooling is provided by a centrifugal fan on the smaller pumps; starting from the EU 160 HWT, cooling is provided by an air-oil heat exchanger combined with a centrifugal fan.
An integrated check valve prevents the oil from rising and air from re-entering the chamber to be drained during shutdown.
An oil mist separation system is built into the tank to separate the oil mist from the exhaust air; the oil is automatically recovered by the pump.
The oversized circuit and the gas ballast valves prevent condensation inside the pump when pumping large quantities of vapour.
Vacuum Range
-
EU HWT Series: from 0.8 to 850 mbar (absolute)
-
Only EU 160 HWT: 0.8 to 400 mbar (absolute)
ACCESSORIES
The following accessories are available and useful for the installation and control of the pump operating parameters:
-
External inlet filter
-
Vacuum gauges / vacuostats
-
Pressure gauges / pressure switches
-
Thermostat
-
Minimum oil level switch
